  • Hollow Fiber membrane MBR
Hollow Fiber membrane MBR

Hollow Fiber membrane MBR

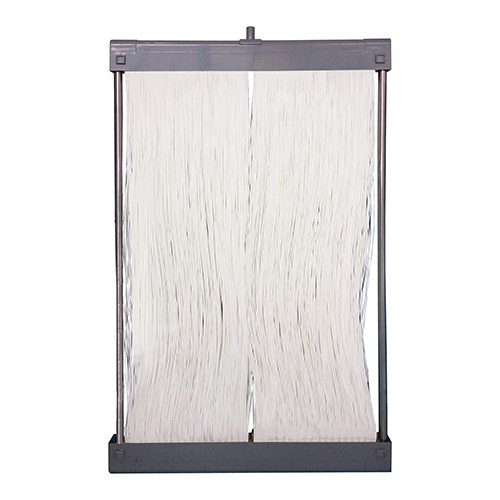

MBR Hollow Fiber Membrane
Product features and benefits
• Excellent quality product water
• Low capital cost and compact design
• Ease of maintenance
Application
Broad range of application for the treatment of high BOD and/or suspended
solids containing wastewater from:
1. Municipal sewage treatment
2. Industrial wastewater treatment including chemical waste and food waste
3. Livestock wastewater treatment
4. Landfill leachate treatment
MBR Hollow fiber Membrane Element
MODEL OR-20C OR-7.5D OR-18E OR-30E

Specification Membrane Material PVDF+PET
Operation Mode Outside-in
Nominal Pore Size 0.03um
Outside Diameter 2.2mm
Available Membrane Area(sq.m.) 20 7.8 18 30
Dimension(mm) 534*46*1560 620*31*1015 1250*31*1300 1250*31*2000
Encapsulation Material of Bottom Epoxy resins/polyurethane
Dry weight 6kg 5kg 12kg 15kg
Wet weight 12kg 9kg 20kg 30kg
Operation Conditions Filtering Type Vacuum Suction
Temperature 5-40
Long Running pH 2~20
Filtrate Flux 10~25L/SQ.M*H
Max TMP 60KPA
Backwash Flux 30~50L/SQ.M*H
Clean In Place pH 1~11
Max NaCIO Cleaning concentration 5,000mg/L
Water Quality Turbidity of Permeate 0.5NTU
SDI15 of Permeate 3.0
Suspended matter 2mg/L
