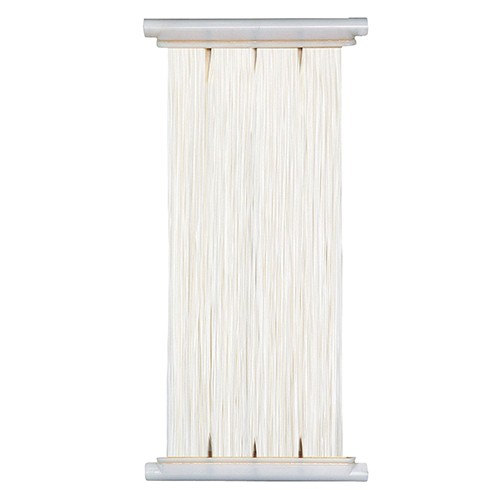

MBR UF Membrane Element
- Product No.:OR-20C
MBR Hollow Fiber Membrane
Product features and benefits
• Excellent quality product water
• Low capital cost and compact design
• Ease of maintenance
Application
Broad range of application for the treatment of high BOD and/or suspended
solids containing wastewater from:
1. Municipal sewage treatment
2. Industrial wastewater treatment including chemical waste and food waste
3. Livestock wastewater treatment
4. Landfill leachate treatment
MBR Hollow fiber Membrane Element | |||||
MODEL | OR-20C | OR-7.5D | OR-18E | OR-30E | |
Specification | Membrane Material | PVDF+PET | |||
Operation Mode | Outside-in | ||||
Nominal Pore Size | 0.03um | ||||
Outside Diameter | 2.2mm | ||||
Available Membrane Area(sq.m.) | 20 | 7.8 | 18 | 30 | |
Dimension(mm) | 534*46*1560 | 620*31*1015 | 1250*31*1300 | 1250*31*2000 | |
Encapsulation Material of Bottom | Epoxy resins/polyurethane | ||||
Dry weight | 6kg | 5kg | 12kg | 15kg | |
Wet weight | 12kg | 9kg | 20kg | 30kg | |
Operation Conditions | Filtering Type | Vacuum Suction | |||
Temperature | 5-40℃ | ||||
Long Running pH | 2~20 | ||||
Filtrate Flux | 10~25L/SQ.M*H | ||||
Max TMP | 60KPA | ||||
Backwash Flux | 30~50L/SQ.M*H | ||||
Clean In Place pH | 1~11 | ||||
Max NaCIO Cleaning concentration | 5,000mg/L | ||||
Water Quality | Turbidity of Permeate | ≤0.5NTU | |||
SDI15 of Permeate | ≤3.0 | ||||
Suspended matter | ≤2mg/L |
