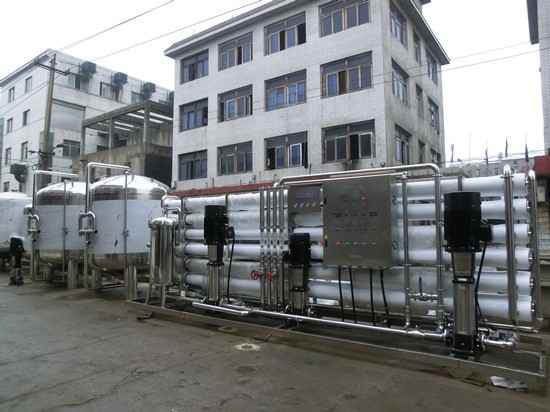

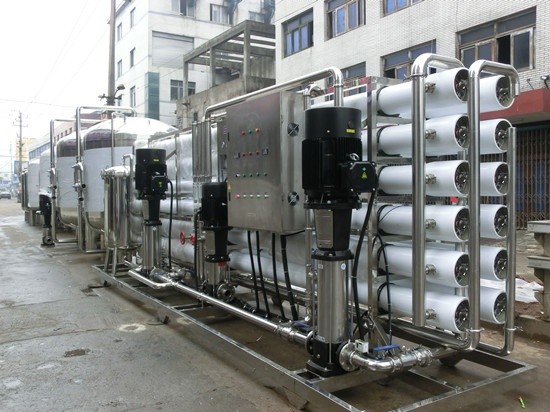

The RO’s are complete, pre-engineered proven designs that produce consistent high quality water in flow rates up to 360000 GPD.

The systems feature simple user-friendly controls, rugged construction, easy access for maintenance and installation.

The systems can be supplied with several options that will help reduce energy, reduce the amount of water required for operation and even provide for water recycling.Some of these options are:

1.Low energy membranes (100-150 psi)

2.High water recovery operation (depending on feed quality)

3.Output controlled operation with variable speed drive

4.Reject water recovery and reuse systems

Standard Features

1.5.0 um multi-cartridge pre-filter

2.Automatic inlet shut-off valve

3.Multi-stage centrifugal pump

4.Two flow meters

5.Programmable auto-flush feature

6.PLC system control

7.Clean-In-Place ports

Materials of Construction

Frame: Stainless steel 304 or Powder coated steel

Membrane Elements: TF Polyamide

Membrane Housing: FRP

Low Pressure Pipe: UPVC

High Pressure Pipe: Stainless Steel

Pump: Stainless Steel

Operating Parameters


Operating Pressure: < 300 psig

Maximum Recovery: 60% - 75%

Nominal Rejection: 95-99%

Operating Temperature: 2-35 oC

Minimum Inlet Pressure: 30 psig

Design Temperature: 25 oC

Additional Options

Optional VFD systems

Feed Water ORP

Feed Water pH

Clean in Place (CIP) Unit
