  • 8 stage RO system

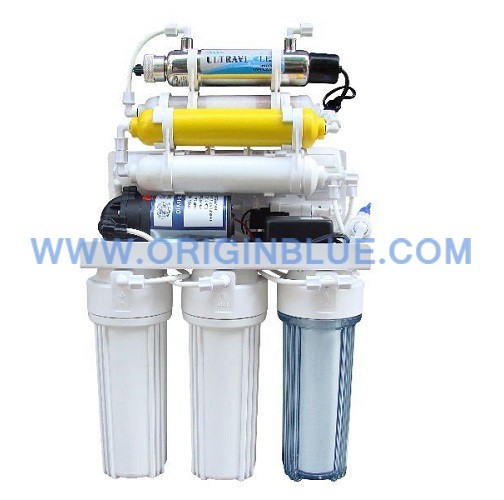

8 stage RO system

8 stage RO system

Stand 9 stage RO system

MODEL NO. RO-50G-A9
20/40/40HQ 336PCS/600PCS/720PCS
DESCRIPTION

Purified water capacity:50GPD(187L)/Day
8 Stage filters:PP+GAC+CTO+RO+T33+T33+MS+UV
Manual flusing with ratio of wastewater
Fitting Type:Quick Connector
Pressure Tank:3.2G steel tank(optional 3.0 plastic tank)
VONTRON 50GPD RO membrane(optional CSM,FILMTEC)
Faucet:GF-B1(optional)
Double O ring filter housing
Booster pump:24VDC transformenr 110v/220v-24VDC
Applicable water temperature: 5-38°C
Net/gross weight: 14/16Kgs
Single unit package dimension:62X42X32CM

GENERAL INTRODUCTION OF REVERSE OSMOSIS WATER SYSTEM

THE FUNCTION OF RO SYSTEM CORE PARTS

First Stage(PP Sediment Filter):To remove sand,silt,dirt and rust particles in water.

Second Stage(Granular Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity.

Third Stage(Block Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity,and suspending particles.

Fourth Stage(RO membrane):It is made of the semi-permeable membrane with the 0.0001 micron filtration precision for separating and removing the bacteria,heavy metal,salt bad mineral substance and other dissolved matter and chemical drug in the running water.

Fifth Stage(Post Inline Carbon Filter):To absorb the odor,and adjust the taste.



OPTION:SIXTH STAGE

(Mineralized ball or Aluminite):To improve the quality of RO water by the far infrared radiation and releasing essential mineral substance.

(Ultraviolet Sterilizer):It utilizes germicidal ultraviolet light to quickly and reliably disable bacteria,viruses and other micro-organisms present in water.
(Magnetizing Filter):The RO water passes through the magnetic field,breaking the original polymer macromolecules so that they become many single active small molecules,the alkaline alkalescent small molecules water is healthful for human body.
