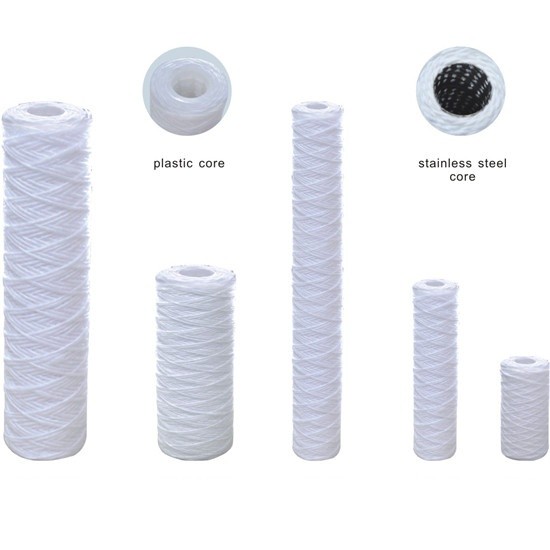

String Wound Cartridge Series

String wound cartridges offer true depth filtration with high dirt holding

capacity and extremely low media migration.It is manufactured using a high

speed,continuous wind process which creates a superior one-piece filter with

hundreds of diamond shaped tunnels that get progressively smaller from the

outer diameter to the core.

FEATURES

Greater solids holding capacity

Longer service life

Low pressure drop

Temperature and specification,lengths and diameters

True depth filtration

APPLICATIONS

RO water purification system

Drinking water system

Pharmaceutical

Electronics/Plating

OPERATION & CONSTRUCTURE

Operation pressure

Media:polypropylene <=0.5Mpa 60℃-70℃

polyester <=0.5Mpa 110℃-120℃

cotton <=0.5Mpa 120℃-140℃

MATERIALS

polypropylene,polyester,cotton

MIRCON RATINGS(um)

Nominal 1,5,10,20,30,50,75,100 micron
