Reverse Osmosis Machines with EDI
- Product No.:RO-EDI SERIES
Reverse Osmosis Machines with EDI
RO-EDI SERIES

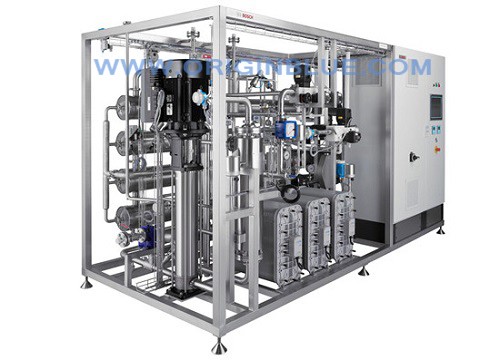

The RO-EDI reverse osmosis/electrodeionization is a unique water purification system that combines both reverse osmosis and electro-deionization into one integrated unit.The RO-EDI system will produce high purity water low in TOC,microorganisms and particles up to 18.2 Megohm.cm at flows up to 15gpm.RO-EDI system have several different purification modules to choose from.Our quality management system is registered to ISO 9001:2000.
The RO-EDI system includes a 1.0micron prefilter,multistage high pressure RO booster pump,RO pressure vessels in a choice of materials,RO membranes,EDI power supply,high water recovery,choice of piping materials,monitoring instrumentation,manual&automated valves.The RO-EDI system includes a EPROM and OIT terminal to operate both the RO-EDI system and components that will interface with the system and completely pre-wired and pre-piped on one skid for fast economical installation.
TYPICAL APPLICATIONS:
Pharmaceutical preparations
Biological engineering
Central laboratory wter
Power industry
Humidification systems
Rinsing of electronic components
Glassware rinsing
Preparation of process chemicals
Process ingredient water
Rinse water
Power/Co-Generation
STANDARD FEATURES:
Skid mounted
Internal power supply
Operational instruments
Epoxy coated steel frame
Pressure gauges
Flow meters
Pre-wired/pre-plimbed
Factory tested
OPTIONS AVAILABLE
Hot water sanitizable
Various piping materials
Stainless steel frame
Brine feeder
Ultraviolet sterilizer
System validation
NIST traceable instrumentation
RO-EDI series
Specifications at 25℃
Other voltages are available upon request.
Feed water requirements and other specifications are available pon request
